Two Wheeler Chassis Dynamometer

Overview

Ono Sokki Two Wheeler Chassis Dynamometer system has been upgraded to meet the needs of wide range of motorcycle tests such as Performance, Endurance and Exhaust gas Emission test (optional). It is supports a full line of peripheral equipment by superior technology. Ono Sokki also provide technical support for the design of the testing room

  • Conforms to various regulations including WMTC, INDIA, and EURO Mode
  • AC Dynamometer with electrical inertia controlled.
  • High accuracy torque detector used for control and measurements.
  • Components necessary for Performance and Endurance test are included, such as front wheel holding unit, Driver’s Display & Driver’s Aid.
  • Application software necessary for emission test is optional, such as emission data processing.
Two Wheeler Chassis Dynamometer

Measurement System

Flexible Automatic Measuring System -Release 5 (FAMS-R5)

Control Tower

Control Tower

  • Flexibly support’s Emission (optional), Performance and Endurance tests.
  • Control unit and measurement unit can be located separately.
  • Direct sensor input to a measurement unit without convertor.
Drivers Display

Drivers Display

  • Screen switching function: measurement screen or Driver’s Aid screen.
  • Support a driver to know various measurement data to check the driving conditions.
  • Driver’s Aid support driving operations through displaying target speed patterns and target gear shift timing graphically.

Optional Peripherals

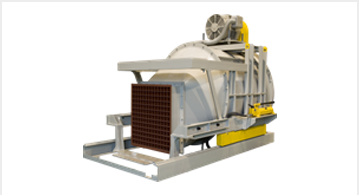

Engine Cooling Fan
Engine Cooling Fan
  • Flexibly support’s Emission (optional), Performance and Endurance tests.
  • Control unit and measurement unit can be located separately.
  • Direct sensor input to a measurement unit without convertor.
Throttle Actuator
Throttle Actuator
  • Screen switching function: measurement screen or Driver’s Aid screen.
  • Support a driver to know various measurement data to check the driving conditions.
  • Driver’s Aid support driving operations through displaying target speed patterns and target gear shift timing graphically.
Fuel Flow Measurement
Fuel Flow Measurement
  • Screen switching function: measurement screen or Driver’s Aid screen.
  • Support a driver to know various measurement data to check the driving conditions.
  • Driver’s Aid support driving operations through displaying target speed patterns and target gear shift timing graphically.

Specifications

Item Standard Type Small Type
Roller
  • Maximum Speed [Km/h]
  • Diameter / Width [mm]
  • Material
  • Surface
  • 200
  • 530.5/300
  • Steel
  • Hard Chrome planting
  • 150
  • 530.5/250
  • Steel
  • Hard Chrome planting
Inertia
  • Base intetia [kg]
  • Simulation inertia [kg]
  • Accuracy
  • 120
  • 120-400
  • ± 1%
  • 90
  • 80-250
  • ± 1%
Dynamometer
  • Rated Power [KW]
  • Base/Top Speed [r/min]
  • Accuracy
  • 45/37
  • 1500/2000
  • 7.5
  • 150/1500
Torque Meter
  • Flange Type
  • TQ-1107
  • TQ-1206

Features

  • Hi-Tech Japanese Technology
  • Accurate, fast response and Low noise
  • Robust and Highly durable mechanical system
  • Expandable hardware and software options
  • Compatible with variety of hardware (ECU, OBD) / software options
  • Automatic Road Load Sequence setting
  • Automatic Wheel Clamping using Pneumatic system
  • Highly accurate In-house developed products – Software, Fuel Flow meter, Throttle Actuator, Torque Flange, and Tachometer etc.
  • User friendly operation with safety features & Low maintenance cost
  • Manufacturing in India and service support

Frequently Asked Questions (FAQs)

What is a Two Wheeler Chassis Dynamometer by Ono sokki?

A Two Wheeler Chassis Dynamometer by Ono sokki is a machine used to test the performance of two-wheelers. It measures various parameters such as horsepower, torque, speed, and acceleration of the vehicle while it is running on the machine.

What are the benefits of using a Two Wheeler Chassis Dynamometer?

Two Wheeler Chassis Dynamometer provides a controlled environment for testing the performance of two-wheelers. It helps to identify issues with the engine, transmission, or other components that may be affecting the vehicle's performance. It also provides accurate and repeatable results that can be used to improve the performance of the vehicle.

What types of two-wheelers can be tested on a Two Wheeler Chassis Dynamometer?

The Two Wheeler Chassis Dynamometer can be used to test a wide range of two-wheelers, including motorcycles, scooters, and ATVs. It can also be used to test electric two-wheelers.

How does the Ono sokki Two Wheeler Chassis Dynamometer measure the performance of the vehicle?

The Ono sokki Two Wheeler Chassis Dynamometer measures the performance of the vehicle by applying a load to the rear wheel of the vehicle and measuring the force and speed of the wheel as the vehicle accelerates.

How is the Ono sokki Two Wheeler Chassis Dynamometer controlled?

The Ono sokki Two Wheeler Chassis Dynamometer is controlled using a computer software program that allows the user to set up and execute tests, as well as analyze and store the results.
